Railway scales

Explanation

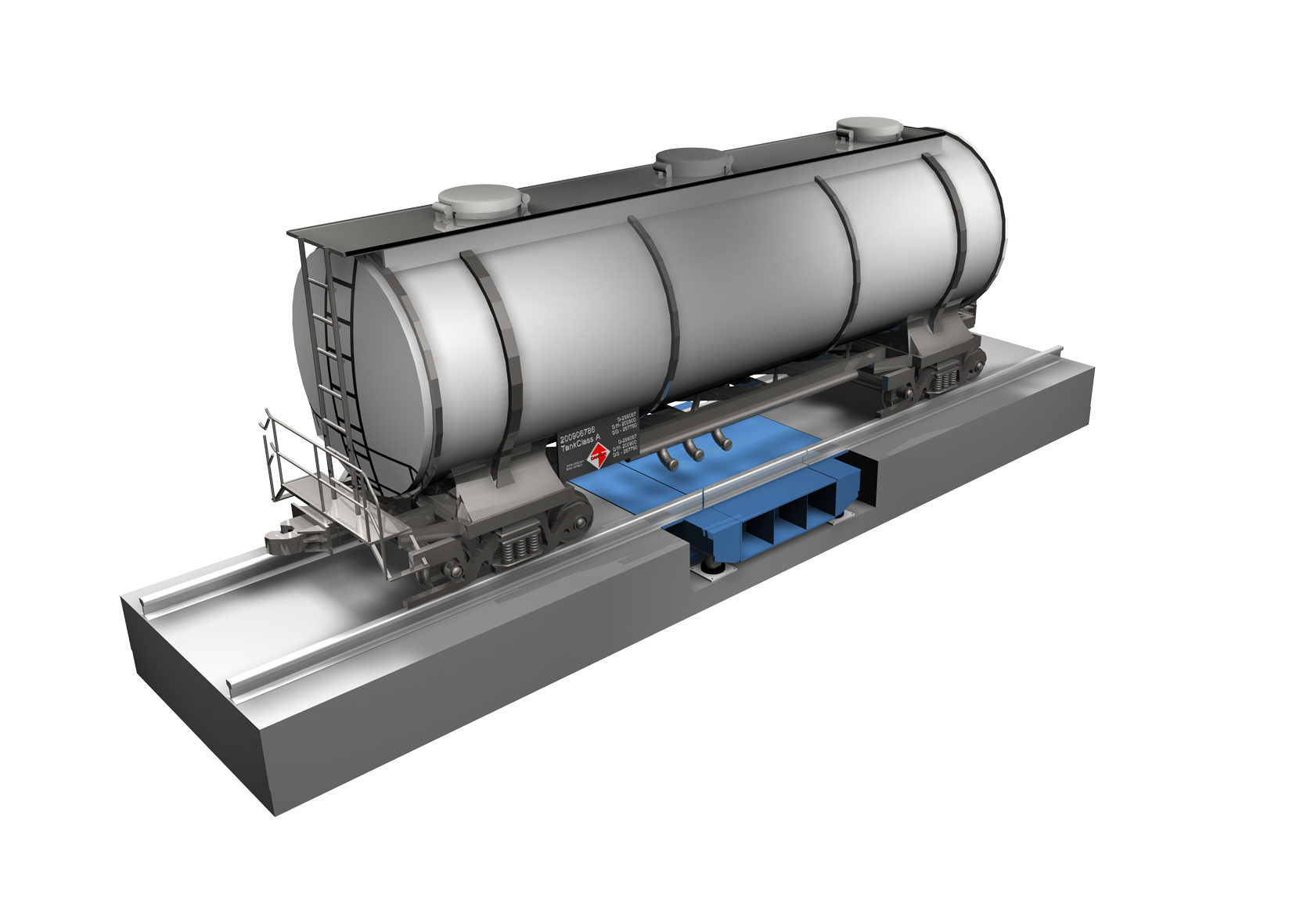

ESİT RW railway scales are made of fully electronic weighing equipment and pit-mounted steel weighbridge(s) embedded under the rails. RW's design is based on the weight of the railway engine, which will cross over the platform, and its dynamic effects, and the scale has a robust static build that can withstand heavy duty conditions.

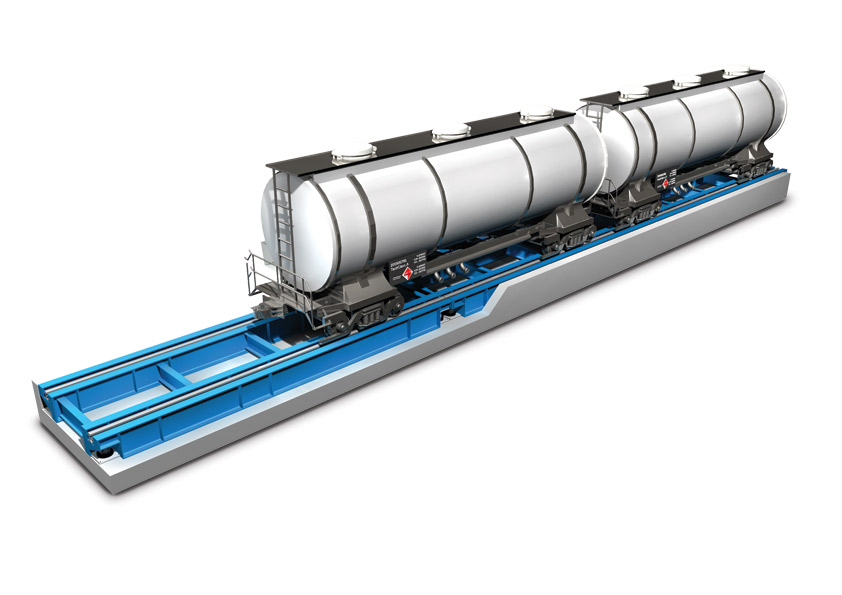

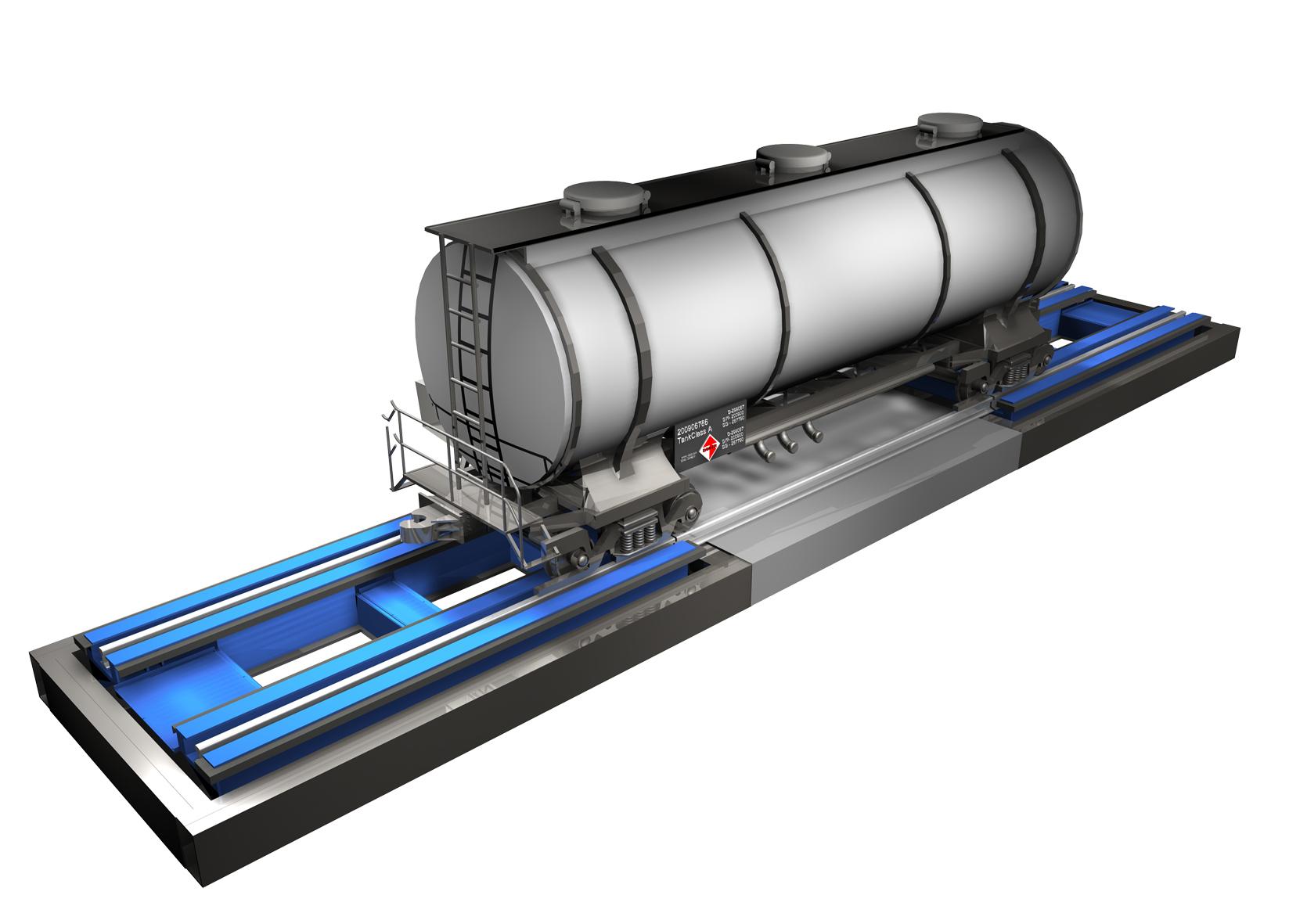

Railway wagons are stood and weighed on the scale. Since the wagons are connected to each other, the length of the weighbridge must suit the wagon lengths. In order to provide a weighing solution for all types of wagons, ESİT's RW railway scales are produced in various lengths and with single or double bridges. In double bridge scales, weighbridges can weigh wagons both individually and collectively, which enables weighing of wagons in different lengths.

Features

  • Rubber pads
  • Multiple load cells
  • Low profile Steel cable housings
  • Lightning protection
  • Assigning incremental sequence numbers to every weighing ticket Memory capacity to store 100,000 weighing operations
  • Capability to recognize vehicles of fixed tare values 10 user-definable ticket data fields
  • Detailed reporting between given dates
  • Ability to edit ticket and report formats
  • Access to any data based on given criteria
  • Printer connection Label and report printing
  • Legal metrology approval
  • CE certificate

Models

Model Nominal capacity (ton) Minimum capacity (kg) Sections e=d* (kg) Platform size (m) Platform Loadcell number Loadcell model J-Box Indicator
120T-RW-1807 120 1000 50 1,8x7 Steel 4 HSC J-4 PWI-T
120T-RW-1808 120 1000 50 1,8x8 Steel 4 HSC J-4 PWI-T
120T-RW-1814 120 1000 50 1,8x14 Steel 6 HSC J-6 PWI-T
120T-RW-1816 120 1000 50 1,8x16 Steel 6 HSC J-6 PWI-T
120T-RW-1821 120 1000 50 1,8x21 Steel 10 HSC J-10 PWI-T

Specifications

**Loadcell
Model HSC
Protection Class IP68
Mounting Kits HSC-EL
Fixed operating temperature interval -10°C ... +40°C
Operating temperature interval -40°C ... +80°C
***Indicator
Model PWI-T
Protection Class IP54
Feeding tension and strentgh 90-265VAC 60W
Operating temperature interval 10°C ... +40°C
J-Box connection box
Protection class IP66
Material Alüminium
Enviroment
Fixed operating temperature interval -10°C ... +40°C
Operating temperature interval -40°C ... +80°C
Feeding tension and strentgh

* Multi interval option available.

** You can find detailed information about Load cells and Mounting Kits, in Esit's Load cell and Mounting Kit catalogue.

*** You can find detailed information about the Indicators used with Truck Scales, in Esit's Indicator and Control Devices catalogue.
