Truck Scale
Explanation

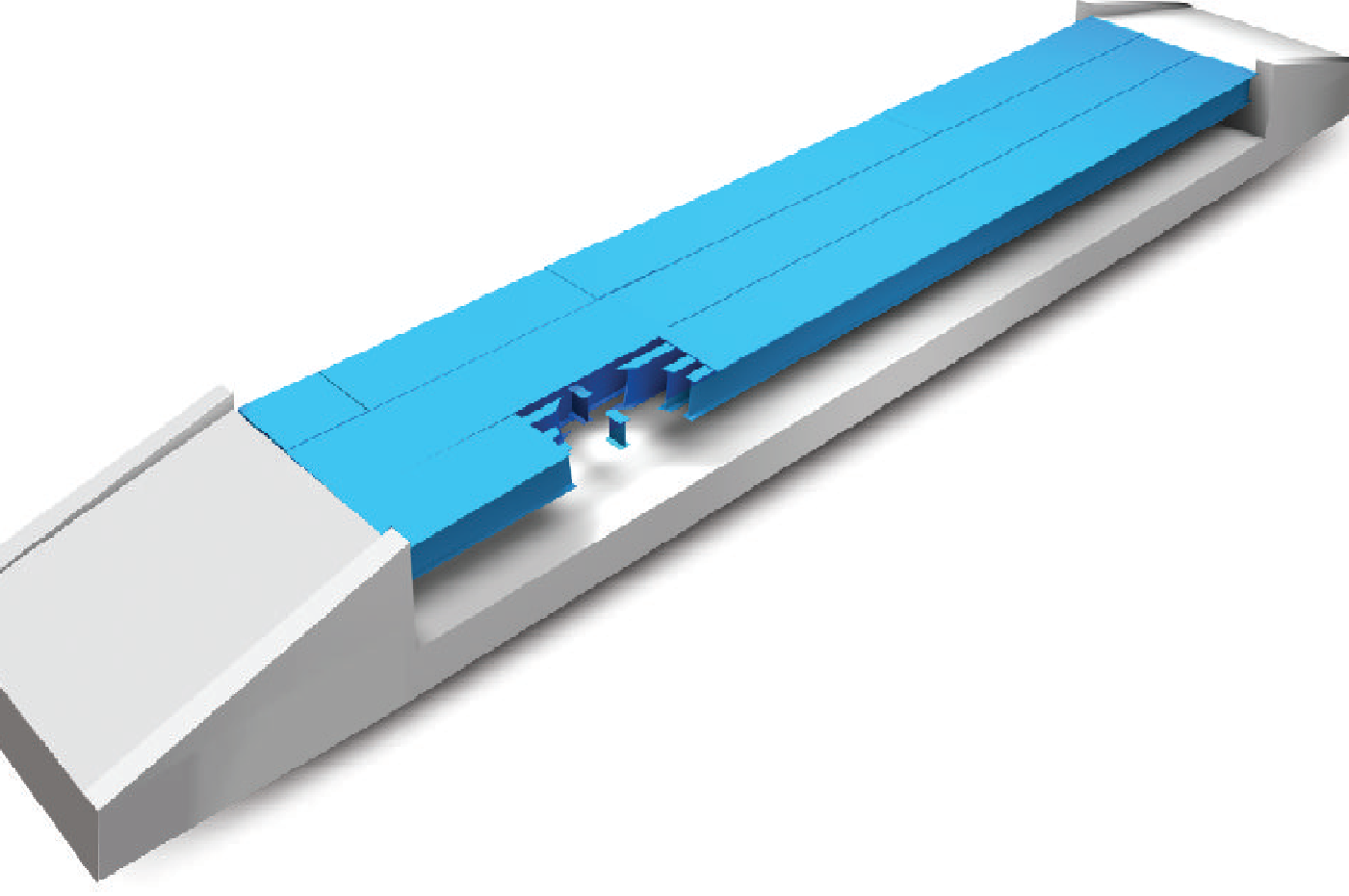

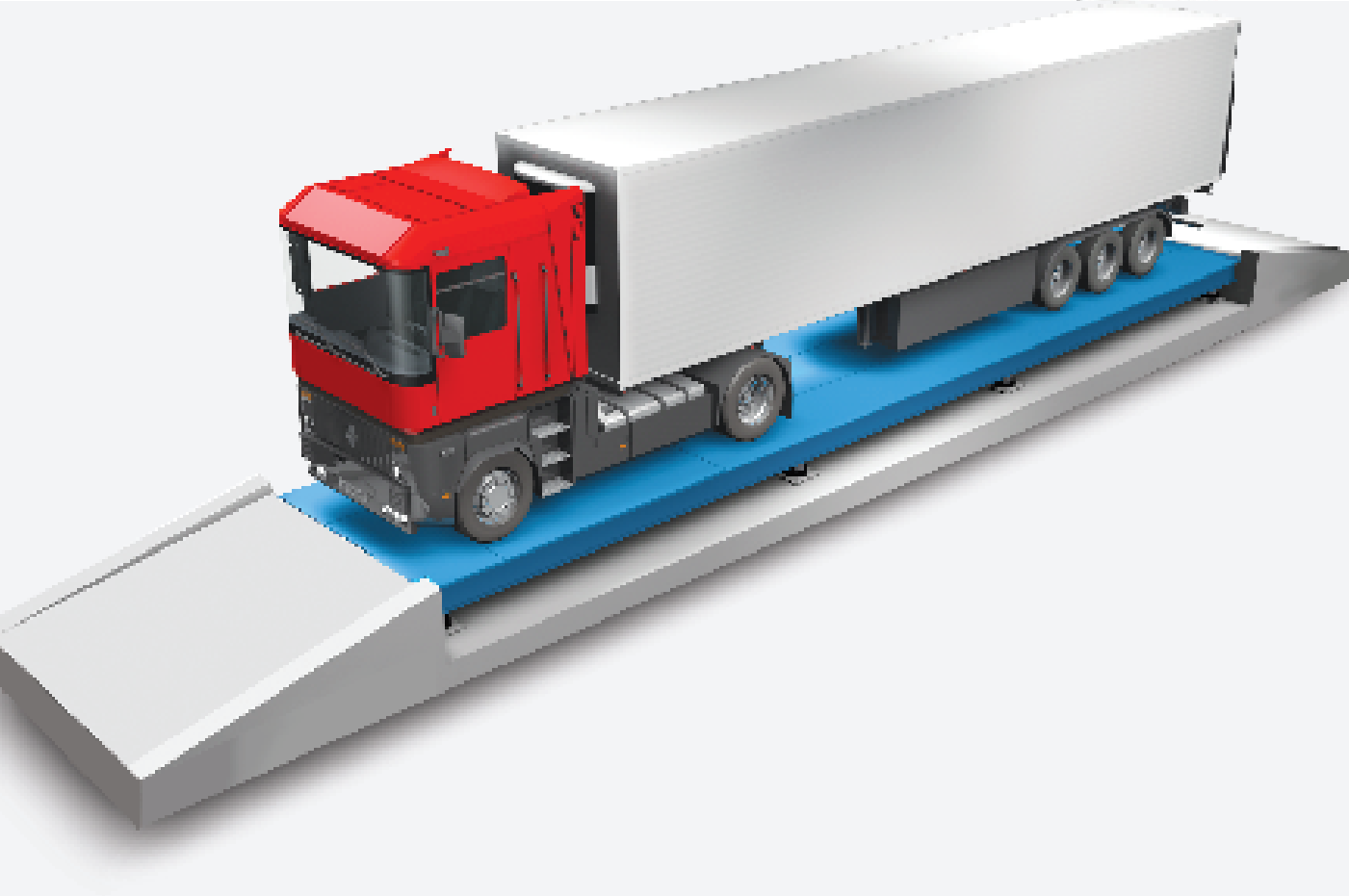

ESİT Hippo is a modular steel weighbridge with pit-mount and surface-mount options. Designed to meet European standards in its respective industry, Hippo offers a strong static build which is suitable for use in every sector where legal loading and weight measurement is required.
ESİT Hippo weighbridges feature a modular structure with a width of 3 m and are produced in various lengths from 4 m to 24 m with 2 m intervals. Thanks to its modular structure, Hippo can be easily assembled and is suitable for international container shipping.
Hippo steel weighbridge is designed not only to provide robustness and long-term durability, but also to offer easy assembly, easy handling, easy cleaning and ideal height.
ESİT Hippo vehicle scales are equipped with ESİT SC load cells and SC EL rubber mounting kits as well as PWI-T microprocessor-based electronic weighing terminals as standard.
Features
- Rubber pads
- Multiple load cells
- Low profile
- Dust covers
- Steel cable housings
- Lightning protection
- Assigning incremental sequence numbers to every weighing ticket
- Memory capacity to store 100,000 weighing operations
- Capability to recognize vehicles of fixed tare values 10 user-definable ticket data fields
- Detailed reporting between given dates
- Ability to edit ticket and report formats
- Access to any data based on given criteria
- Printer connection
- Label and report printing
- Legal metrology approval
- CE certificate
Explanation
| Model | Nominal capacity (ton) | Minimum capacity (kg) | Sections e=d* (kg) | Platform size (m) | Platform | Loadcell number | Loadcell model | J-Box | Indicator |
| 040T-HI-S-0304 040T-HI-S-0306 040T-HI-S-0308 040T-HI-S-0310 |
40 | 400 | 20 | 3x4 3x6 3x8 3x10 |
Steel | 4 6 |
SC | J-4 J-6 |
PWI-T |
| 060T-HI-S-0304 060T-HI-S-0306 060T-HI-S-0308 060T-HI-S-0310 060T-HI-S-0312 060T-HI-S-0314 060T-HI-S-0316 060T-HI-S-0318 060T-HI-S-0320 060T-HI-S-0322 060T-HI-S-0324 |
60 | 400 | 20 | 3x4 3x6 3x8 3x10 3x12 3x14 3x16 3x18 3x20 3x22 3x24 |
Steel | 4 6 8 10 |
SC | J-4 J-6 J-8 J-10 |
PWI-T |
| 080T-HI-S-0314 080T-HI-S-0316 080T-HI-S-0318 080T-HI-S-0320 080T-HI-S-0322 080T-HI-S-0324 |
80 | 1000 | 50 | 3x14 3x16 3x18 3x20 3x22 3x24 |
Steel | 8 10 |
SC | J-8 J-10 |
PWI-T |
| 100T-HI-S-0316 100T-HI-S-0318 100T-HI-S-0320 100T-HI-S-0322 100T-HI-S-0324 |
100 | 1000 | 20 | 3x16 3x18 3x20 3x22 3x24 |
Steel | 8 10 |
SC | J-8 J-10 |
PWI-T |
Explanation
| **Loadcell | |
| Model | SC |
| Protection Class | IP68 |
| Mounting Kits | SC-EL |
| Fixed operating temperature interval | -10°C ... +40°C |
| Operating temperature interval | -40°C ... +80°C c |
| ***Indicator | |
| Model | PWI-T |
| Protection Class | IP54 |
| Feeding tension and strentgh | 90-265VAC 60W |
| Operating temperature interval | -10°C ... +40°C |
| J-Box connection box | |
| Protection class | IP66 |
| Material | Alüminyum |
| Enviroment | |
| Fixed operating temperature interval | -10°C ... +40°C |
| Operating temperature interval | -40°C ... +80°C |
| Feeding tension and strentgh | |
 |
Cement & Construction
Cement Plants
In cement production plants the entrence of the raw materials are made with esit truck scales,in busy plants the systems are kept dynamic and fast via esit production line scales, tank scales and electronic monitoring systems enabling the factory to produce with maximum output with minimum waste.
In production lines using Esit automated scales ensures high speed quality production and thus providing economic benefits to the producer.Depending on the various stages of production
belt scales or flow scales can be used to measure while on production or the system will only allow the amount of materials the user sets.
Ready Concrete Plants
In concrete plants material flow to the plant is controlled by Esit truck scales,In concrete production dosage control and tank systems are used.
Construction
In large construction sites material flow is controlled by Esit's truck scales.In sites with heavy traffic Esit's automated recognition systems can be used to accelerate the process of material flow.
All Esit products are electronically controlled and are protected from external effects.All Esit products are capable of connecting to other industrial control devices thus providing easy control to the user.
ESIT company's weight equipment is currently use at the Turkmenbashy international sea port.
 |
 |
